Attaching the WOO Mount

please do make sure the BUTTON on the WOO should face your RIGHT FOOT

· Prerequisites
· Mount on a Kiteboard / Wakeboard

Prerequisites

PARALLEL
The long side of the WOO should follow the long side of your board, so that it’s PARALLEL to the board (not perpendicular).

20642064

BUTTON TO RIGHT FOOT
Independent if you’re a Regular or Goofy rider, the button on the WOO should ALWAYS face your RIGHT foot! We use the orientation of the WOO for correct Stance and Trick Detection. Set your stance in the WOO Sports App and the WOO knows if you did a trick in your normal stance (Regular / Goofy), or if you did it switch (SW).

10561056

__

Mount on a Kiteboard

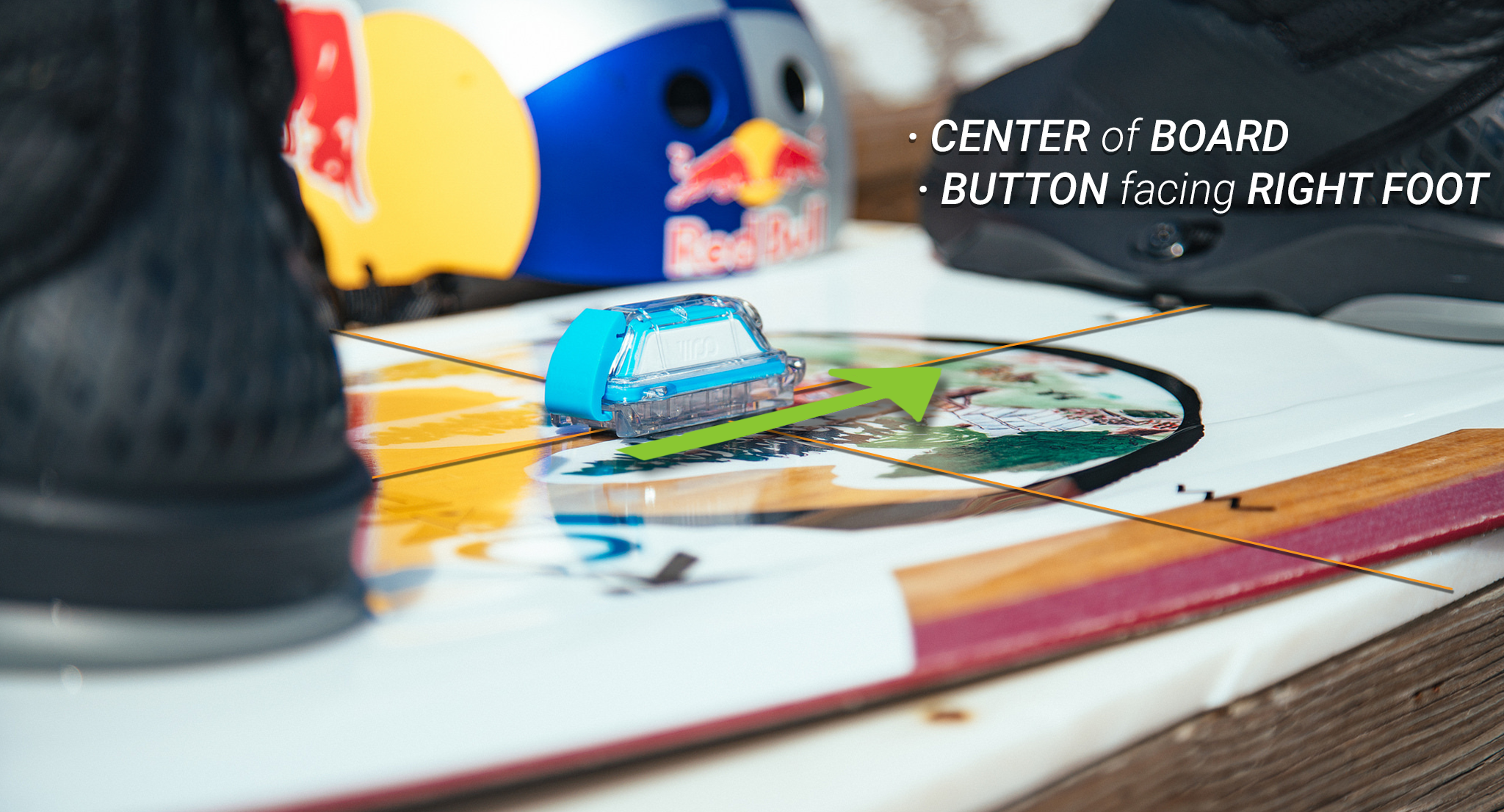

Every WOO comes with an adhesive mount that's used to attach the sensor to your board. For maximum accuracy, the sensor needs to be placed in the center of the board with the long edge parallel to the long edge of the board:

❗️

Mount placement

Note that the mount needs to be placed in the center of your kiteboard. Mounting it at the tip will lead to false results and will require us to invalidate your jumps.

20642064

To attach the mount:

  1. Start by identifying the center of your board. You’ll want to place the mount on the center of your board, running parallel with the rail. For kiteboards, if you use a grab handle, place your WOO so you can still use your handle (we recommend just to the side of the handle - still in the "middle" but slightly to one side.
  2. Use the alcohol swab provided to clean the center of your board and let the board dry.
  3. Remove the backing from the WOO Mount and place on the center of the board. Press firmly to make sure it’s solidly attached. Make sure the BUTTON of the WOO is facing your RIGHT FOOT.
  4. For best results, let the mount set overnight before riding.
57605760

What’s Next

Now that your WOO Mount is firmly attached, you're now ready to start playing and record your first session on WOO!
