User Guide

WOO Cares! WE'RE HERE TO HELP

As riders ourselves, we know how frustrating it is when gear gets in the way of a great session.

We’ve designed WOO to be as simple to use as possible, but in the chance that you need a hand getting things going, we’re here to help. Check out the documentation and feel free to shoot us a message about anything! Reach us at support@woosports.com

Mount

simple, low-key, bullet-proof

Note:

All WOO 3.0 units come standard with a Frequent Flyer Mount

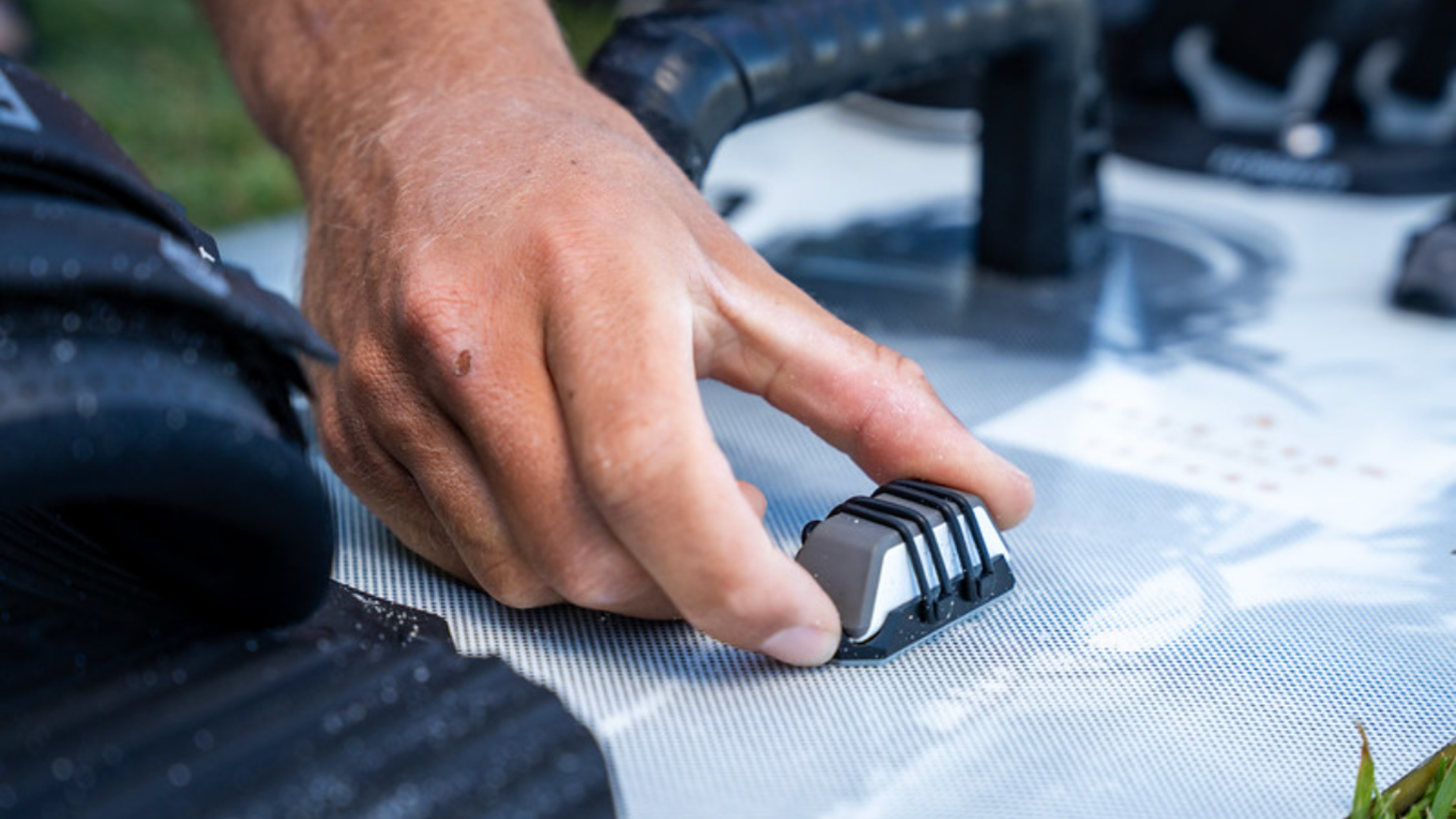

Have a mount ready for every board in your quiver. Attach the adhesive mounts to your board, then clip in your WOO and go ride! We've designed the mount to be as simple as possible. Simply place your WOO in the mount, safely secure your WOO with the rubber O-rings, and you'll be ready to ride! It's a matter of seconds with this low-key, easy to use mount!

Attaching the Mount

· Prerequisites

· Mount on a Kiteboard / Wakeboard
· Mount on a Snowboard
· Mount on a Ski Boot

Prerequisites

PARALLEL
The long side of the WOO should follow the long side of your board, so that it’s PARALLEL to the board (not perpendicular).

BUTTON TO RIGHT FOOT
Independent if you’re a Regular or Goofy rider, the button on the WOO should ALWAYS face your RIGHT foot! We use the orientation of the WOO for correct Stance and Trick Detection. Set your stance in the WOO Sports App and the WOO knows if you did a trick in your normal stance (Regular / Goofy), or if you did it switch (SW).

Note:

Depending on what type of board your want to mount your WOO Mount, we recommend some slight differences between Kiteboard & Wakeboards, Snowboards, and Ski's.

__

Mount on a Kiteboard / Wakeboard

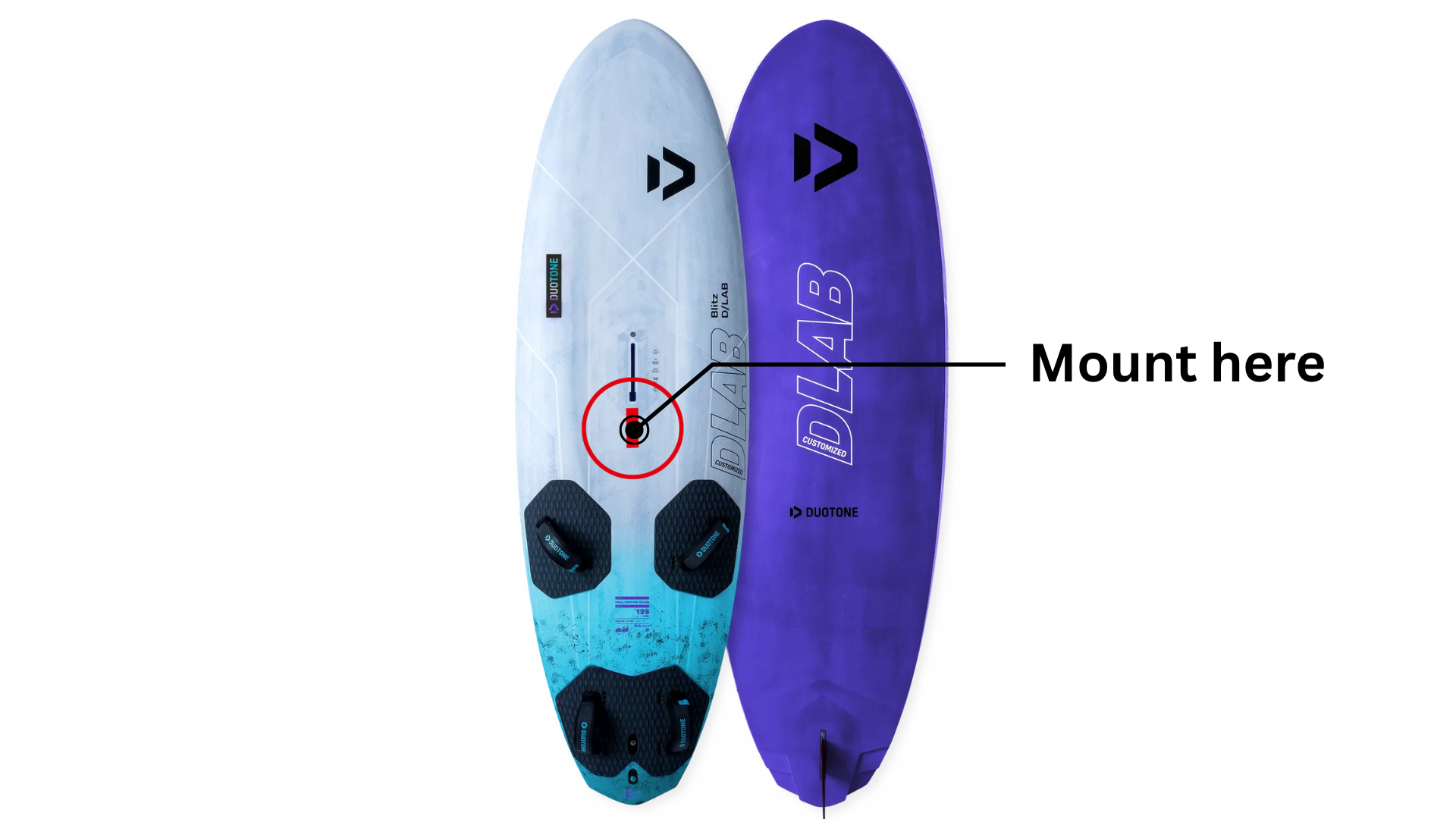

Every WOO comes with an adhesive mount that's used to attach the sensor to your board. For maximum accuracy, the sensor needs to be placed in the center of the board with the long edge parallel to the long edge of the board:

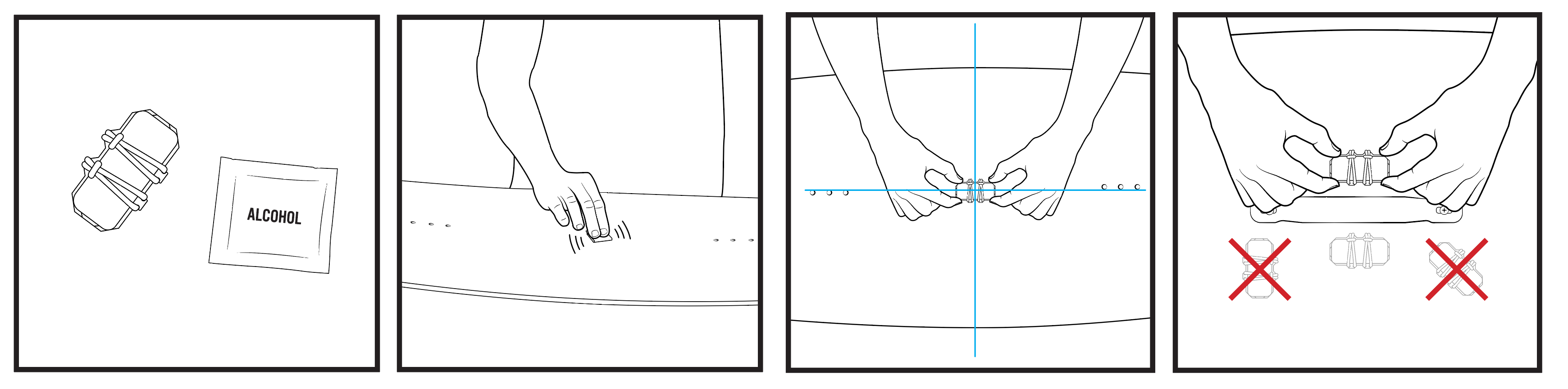

To attach the mount:

  1. Start by identifying the center of your board. You’ll want to place the mount on the center of your board, running parallel with the rail. For kiteboards, if you use a grab handle, place your WOO so you can still use your handle (we recommend just to the side of the handle - still in the "middle" but slightly to one side.
  2. Use the alcohol swab provided to clean the center of your board and let the board dry.
  3. Remove the backing from the WOO Mount and place on the center of the board. Press firmly to make sure it’s solidly attached. Make sure the BUTTON of the WOO is facing your RIGHT FOOT.
  4. For best results, let the mount set overnight before riding.

__

Mount on a Snowboard

Every WOO comes with an adhesive mount that's used to attach the sensor to your board. For maximum accuracy, the sensor needs to be placed close to the center-width of the board, and close to your front foot, with the long edge parallel to the long edge of the board.

To attach the mount:

  1. Before attaching the WOO Mount, make sure to warm up your board to room temperature and dry the area you will be sticking the WOO Mount. We recommend placing your board inside for a couple of hours.
  2. Once your board is at room temperature, identify the center-width of your board so that it's centered between your Toe-edge and your Heel-edge.
  3. If you're a Regular footed rider, the WOO Mount should be between the center of the board and your Left Binding. If your a Goofy footed rider, the WOO Mount should be between the center of the board and your Right Binding. *The reason for this is that if your back foot is loose (f.e. when using lifts), you're less likely to hit the WOO Mount with your back foot when the WOO Mount closer to your front binding then when it's dead centered on your board.
  4. Use the alcohol swab provided to clean the center of your board and let the board dry.
  5. Remove the backing from the WOO Mount and place on the center of the board. Press firmly to make sure it’s solidly attached. Make sure the BUTTON of the WOO is facing your RIGHT FOOT.
  6. For best results, let the mount set overnight before riding.

__

Mount on a Ski Boot

Every WOO comes with an adhesive mount that's used to attach the sensor to your board. For the Snow - Ski game, the sensor needs to be placed on the back of your Ski-Boot, above your Achilles near the top of the boot. While riding on skis, the WOO's orientation should always be BUTTON facing UP.

To attach the mount:

  1. Before attaching the WOO Mount, make sure to warm up your ski-boot to room temperature and dry the area you will be sticking the WOO Mount. We recommend placing your ski-boot inside for a couple of hours.
  2. Once your ski-boot is at room temperature, identify the position where to place the Mount. The Mount should be on the back of your Ski-Boot, above your Achilles near the top of the boot. It does not matter if the WOO is on your Left or Right ski-boot, as it will work on either one.
  3. Use the alcohol swab provided to clean the center of your board and let the board dry.
  4. Remove the backing from the WOO Mount and place on the center of the board. Press firmly to make sure it’s solidly attached. Make sure the BUTTON of the WOO is facing UP.
  5. For best results, let the mount set overnight before riding.

__

Mount F.A.Q.

Q: What if my mount doesn't look like the ones pictured?
A: You might have a Frequent Flyer Mount. If you have an older blue mount, contact support immediately! Blue mounts can damage the device and make it more susceptible to being lost out on the water.

Q: Why does my WOO need a mount? Can't I just wear it on my body?

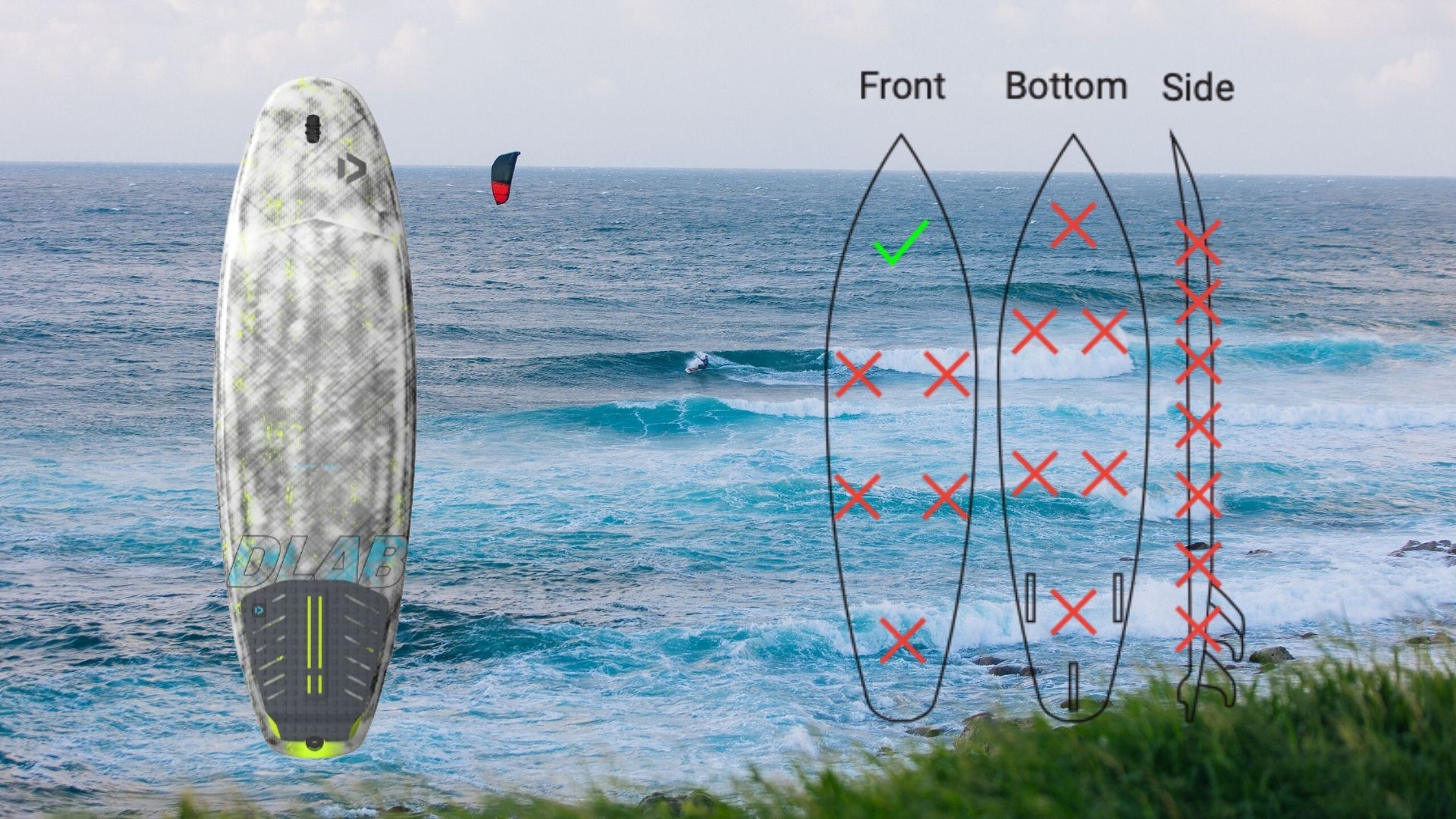

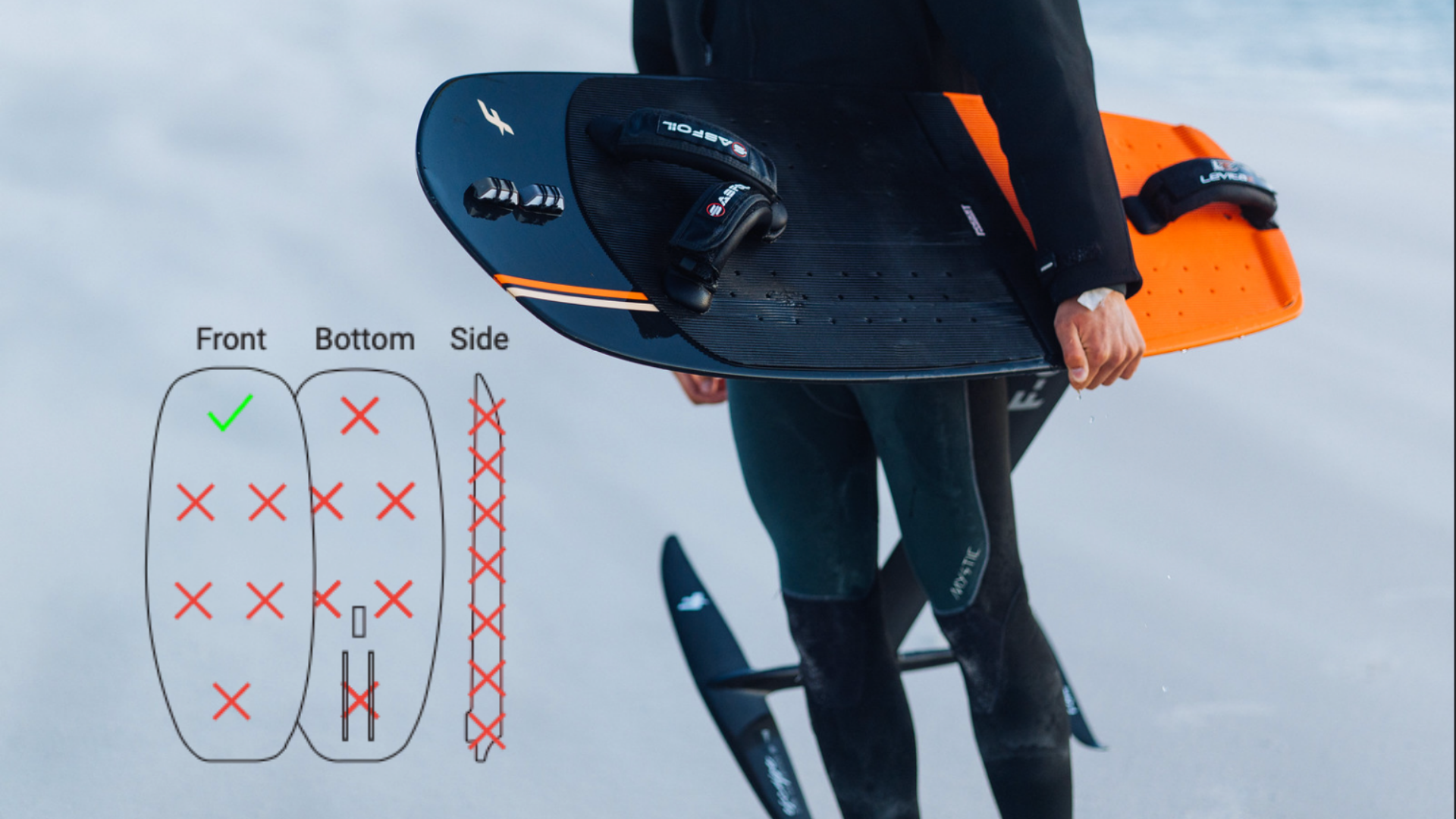

A: The WOO is designed to start calculating jumps based on your board's vibration. When the board leaves the water, the WOO will start measuring your acceleration and rotation. As a result, the sensor needs accurate vibrational feedback which can only come from being mounted flat on the center of the board. If you put your WOO on the tail of the board, if you mount it on top of something else on your board, or if you wear it on your body it will not produce accurate data and therefore can't be trusted as a tool for competition with other riders around the world!

Q: How do I remove a mount?
A: Our mounts use 3M VHB tape which is an industrial grade adhesive that is commonly used as a substitute for screws, rivets, welds, and other similar fasteners. As a result it is extremely difficult to remove, but not impossible! Removing your WOO mount:

· Take your WOO out of the mount
· Apply heat to the top of the mount with a heat gun or hair dryer to soften the adhesive (be careful not to apply too much heat directly to the board since it could damage the topsheet)
· Stick a knife in the layer of adhesive between the mount and the board and gradually work it free
· This will leave a thin layer of adhesive that can easily be peeled off by hand

Note:

Be careful not to damage your board when using the knife! Keep it flush against the surface of the board and try to avoid using something with a sharp tip
